IN-LINE PUMPS

Safe, highly efficient, adaptable and durable, the L range of in-line pumps with in-line fittings can pump fluids of up to 140°C as standard. They are used for circulation of hot and cold water for installation in civil and industrial heating or cooling systems, for sanitary DHW, pressurisation groups, and other civil and industrial applications. Monobloc version up to DN 65, larger sizes with rigid joint for standardised motors.

SAER L In-Line Pump

MATERIALS

CAST IRON
DUCTILE IRON
STAINLESS STEEL

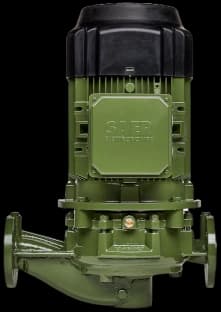

L Series Pump - Standard Model

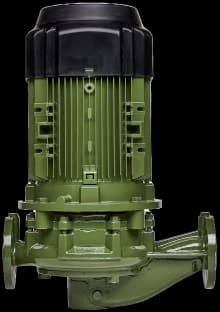

L Series Pump - Compact Model
L Series Pump - Vertical Model

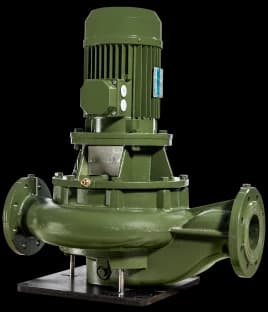

L Series Pump - Base Mount Version

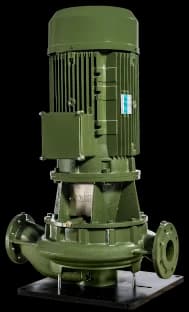

L Series Pump - Extended Base Version

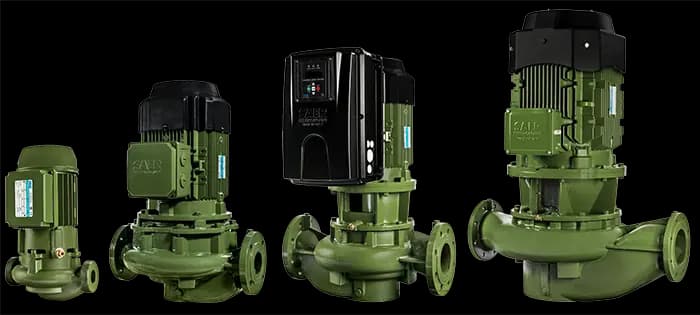

SAER L Series Pump Models - Multiple Sizes and Configurations

Over 170 models.

Next-generation pumps, designed with minimum energy efficiency index on average greater than 7.

Laboratory tests performed to offer solutions even for demanding operating conditions.

TECHNICAL FEATURES

MAXIMUM FLOW RATE
MAXIMUM HEAD
MAXIMUM POWER
50 Hz VERSION
800m3/h
102m
90kW
60 Hz VERSION
700m3/h
80m
90kW

AVAILABILITY AND VARIANTS

Available in different configurations on the basis of the characteristics of the fluid and the conditions of use, including for vertical installations

Adjustable-height base on request, to limit transfer of stresses to pipework

Possibility of special paints and coatings

PAT (pump as turbine) version available

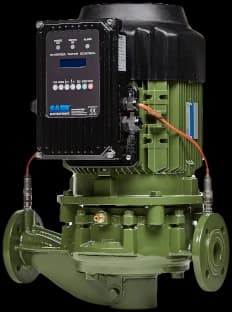

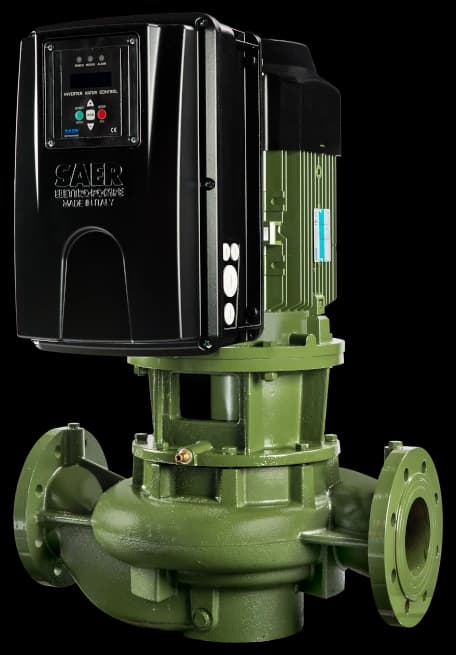

SAER L Series - Inverter Version with Advanced Control Panel
Optional Accessories Icon

OPTIONAL ACCESSORIES

Fittings

Base kit

Special paint cycles

Motor-mounted inverter up to 18.5 kW

Electrical switchboards
